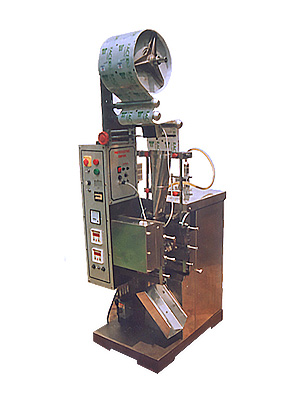

Automatic Form Fill and Seal Machine (SPFFS)

For packaging oil & other liquids into pillow pouches

Applications

For packing free flowing liquids in pouches.

Main Features

• Main power saving and simple operation.
• Efficient machine that allows easy change over to different pouch sizes.
• All parts are manufactured with high quality materials under strict quality control to give accurate performance.
• All contact parts are made of stainless steel 316 or 304.
• Photocell control system can be automatically adjusted and correct the eye mark within ± 1.5mm.

Technical Specification

Production	Speed: 20 to 26 pouches per minute (depending on the viscosity and volume of the product to be packed)
Pouch Volume	Pouch volume can be adjusted from 20 ml to 100 ml depending on the filling width.
FILLING ACCURACY	±0.5%
MATERIAL USED	PET/Print/Adhesive/LDPE-LLDPE-HDPE
THICKNESS	50 to 120 micron
ROLL DIMENSIONS	Internal mantel diameter/core ID - 76 mm External diameter - 250 mm
ROLL WIDTH	100 mm to 250 mm
POUCH DIMENSIONS	Length - 50 to 150 mm Width - 50 to 125 mm
TYPE OF SEALING	3 side seal/4 side seal, continuous heat sealing
POWER REQUIREMENT	Total - 1.6 KW maximum Motor - 0.5 HP, 50 hrs, 220 Volt single phase AC
HEATER LOAD	300 W x 4 = 1200 W
MACHINE DIMENSIONS	750 X 600 X 1750 mm
NET WEIGHT	380 Kg approx.
